Small Pitch Conveyor Chain

ANSI KS B 1407 ISO 606 45+ Yrs Korea 1 / 2 / 3 Strand

Small Pitch Conveyor Chain are used in a wide variety of applications such as packaging, food, cosmetics, pharmaceutical, manufacturing and many other industrial applications. These chains are manufactured based on the components of standard roller chains and specially designed attachments or parts suitable for conveying applications.

All standard and wide contour attachments are available in a wide range of sizes.
A wide variety of assembled chain and components are stocked for quick delivery service.
Raw materials used are high quality carbon steels, stainless steels, engineering plastic, with protective coatings (nickel, zinc, chromium plating and dacrotized coating).
Other special attachment can be supplied against special order.

Dong Bo, as a leader in Korean chain manufacturing with over 45 years of experience, can help you to find the best solution for your conveyor system.

Reference Data

Technical Specifications

ANSI Standard Roller Chains — Single, Double & Triple Strand (DBC Series)

Official manufacturer catalog sheets — click any image to enlarge for full readability

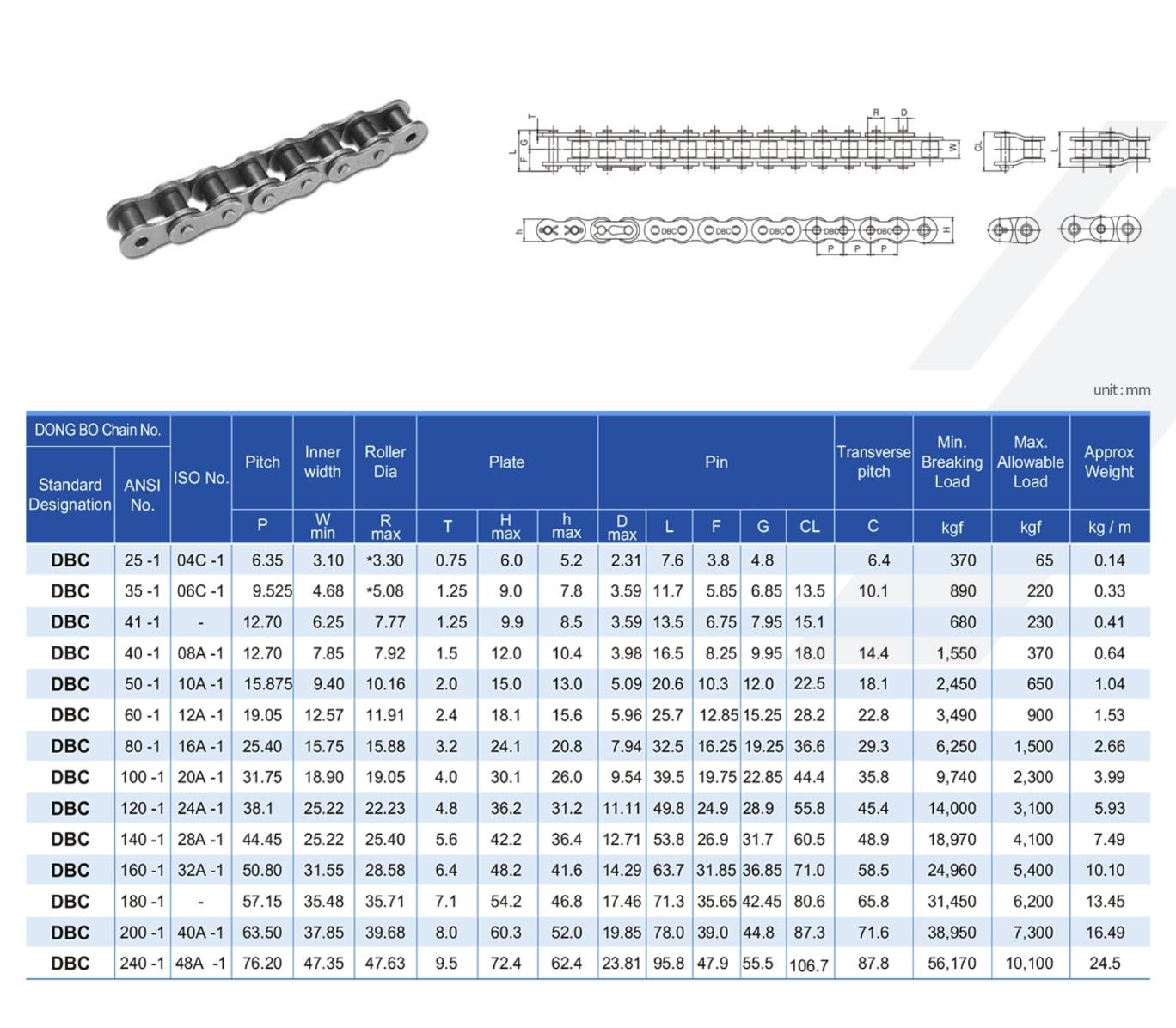

DBC-1 · Single Strand (단열 롤러체인)

ANSI / KS B 1407 / ISO 606

DONGBO DBC-1 Single Strand ANSI Standard Roller Chain — official manufacturer specification data sheet — Click to enlarge

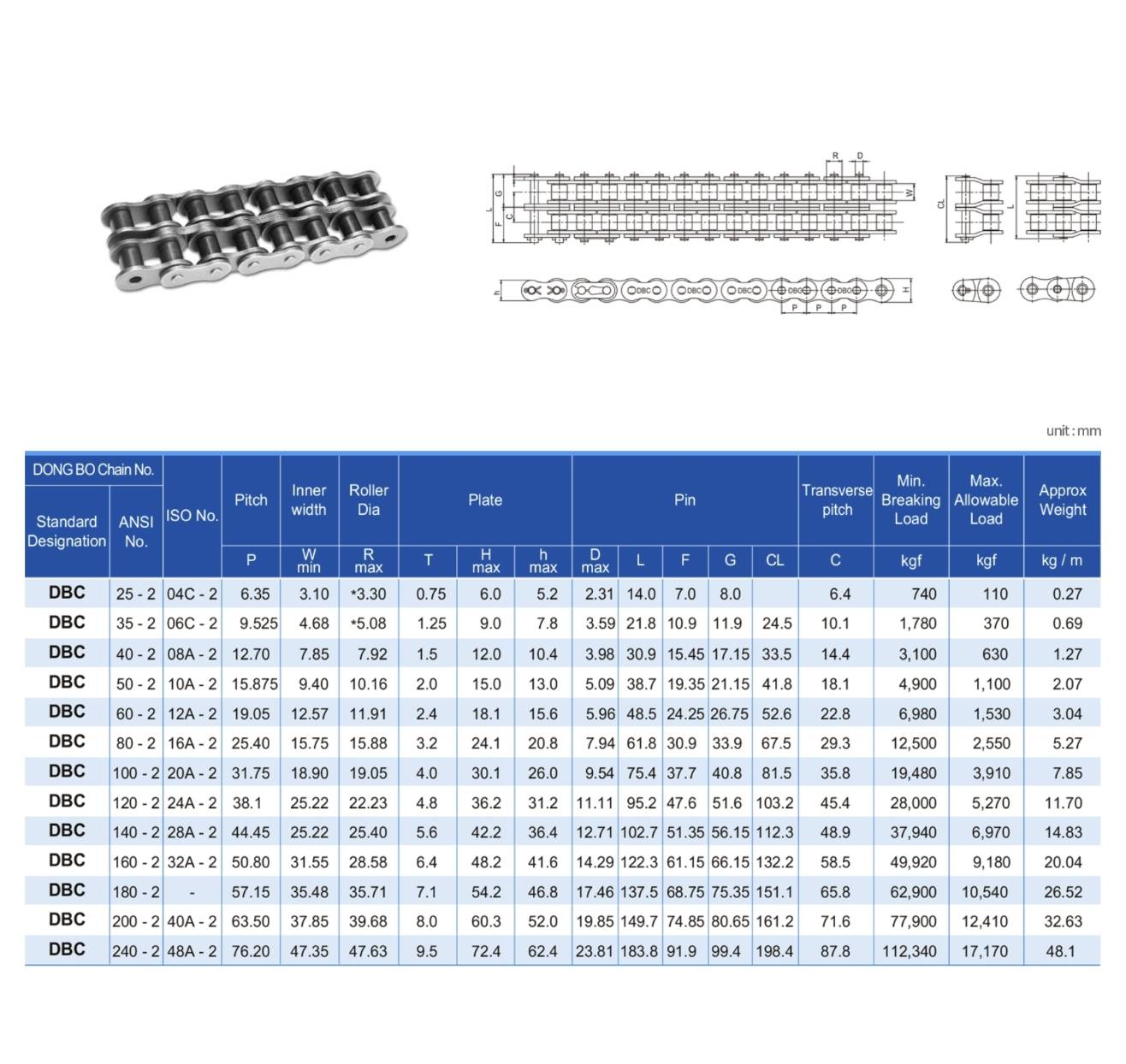

DBC-2 · Double Strand (2열 롤러체인)

ANSI / KS B 1407 / ISO 606

DONGBO DBC-2 Double Strand ANSI Standard Roller Chain — official manufacturer specification data sheet — Click to enlarge

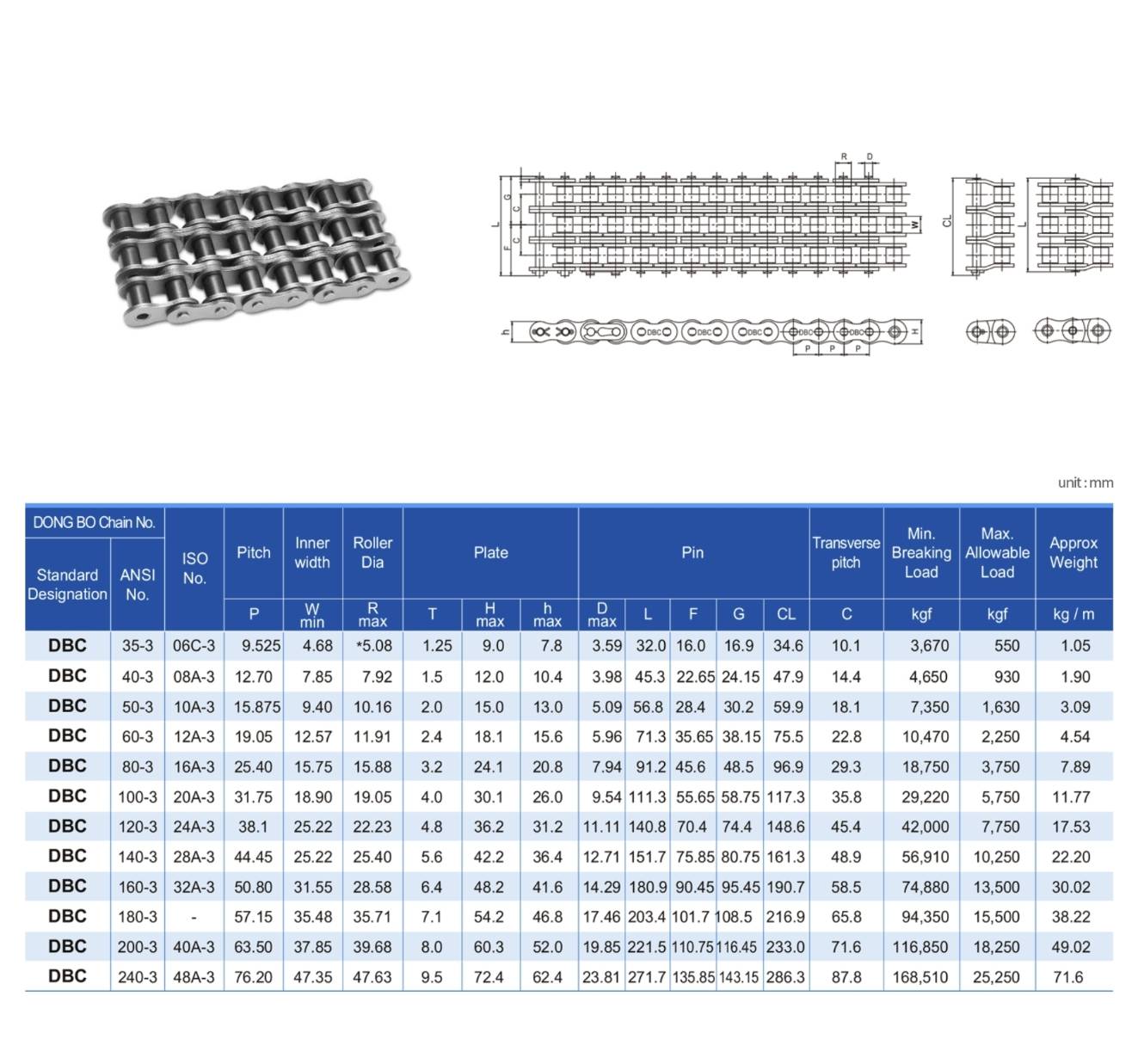

DBC-3 · Triple Strand (3열 롤러체인)

ANSI / KS B 1407 / ISO 606

DONGBO DBC-3 Triple Strand ANSI Standard Roller Chain — official manufacturer specification data sheet — Click to enlarge

About Dong Bo Chain

Dong-Bo Chain, established in 1962, has been producing high-end class chains for over half a century. From the Korean industry's first steps to becoming a global presence, Dong-Bo Chain has not only been a pioneer leading the chain manufacturing industry but a trusted companion to its customers as well.

Customer expectations have been turned into Dong-Bo's quality standard — a solid foundation that drives continuous improvement across the company. Committed to rewarding customers' support and trust, Dong-Bo Chain continues to serve and develop alongside its customers through continuous research and head-and-shoulders quality.
